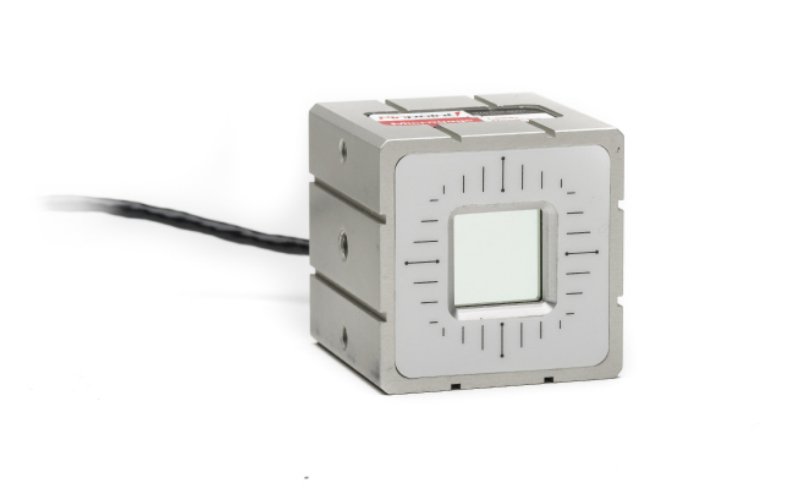

Microgage 2-Axis Receiver

About the Microgage 2-Axis Receiver

A variety of additional receivers are available for use with the Microgage Systems. Options include: 1 inch, 0.75 inches, 0.5 inches and 3.0 inch and a variety of cylindrical receivers and other receiver designs. Pinpoint will also modify housings and receivers to fit your particular needs.

The durable machined enclosure has a number of mounting points for fixtures and mounts and quality optics and components insure years of reliable use in tough industrial settings. Designed for use with the Microgage system.

Microgage 2-Axis Receiver Details

  • Available in 1-inch, 0.75-inches, 0.5-inches, and 3 inches
  • Machined from durable aluminum
  • Convenient built-in mounting points
  • Built to withstand years of industrial use
  • Straightness and linear measurement
  • Perpendicularity measurements
  • Parallelism
  • Machine leveling
  • Flatness and planar checks
  • Runout measurements

Active detection area (0.75″ x 0.75″ 19mm x 19mm)

Receiver housing solid machined aluminum & hard anodized coating

Receiver mounting ¼-20 & 10-32 mounting points

Receiver connections 10′ durable cable or wireless option

Receiver dimensions* 2.0″ x 2.0″ x 2.0″, 2.0″ x 2.0″ x 3.0″ (wireless)

Receiver options standard, bore, spindle, transparent, 4 axis and custom
