Laser Alignment Tools & Measurement Systems

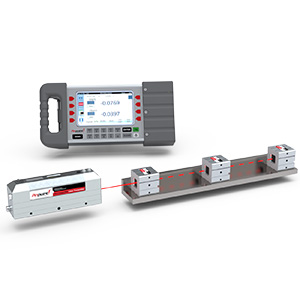

Pinpoint Laser Systems designs and builds laser alignment tools and measurement systems in the USA. The Laser Microgage projects a laser beam as a straight reference line, and a digital receiver reads its position against that line. That lets you measure straightness, flatness, squareness and parallelism to 0.0001 in. (2.5 µm), over distances up to 165 ft.
- Accurate: 0.0001 in. (2.5 µm), from a few inches out to 165 ft
- Versatile: straightness, flatness, squareness and parallelism, bore alignment, roll alignment and more

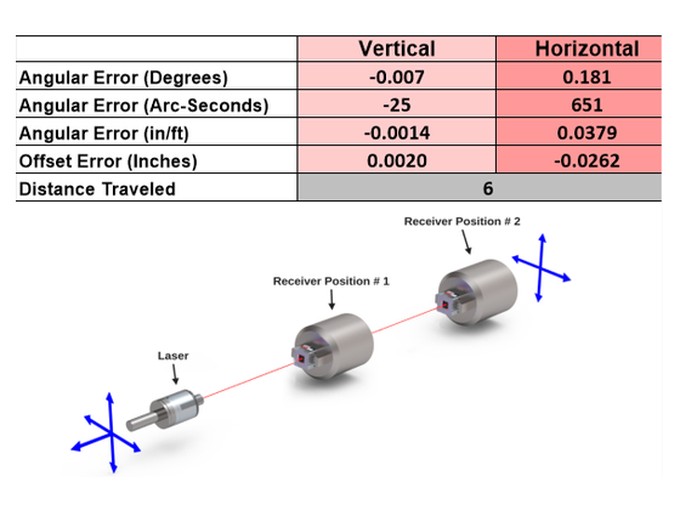

- Actionable results: a color touchscreen display with step-by-step routines. Pinpoint Capture software reads multiple receivers at once and exports results to Excel
- Portable: battery powered, wireless receivers, and everything packs into one compact case
- Production ready: handheld tools that also mount as fixtures on assembly lines, with backup units to keep lines running
- Customizable: custom mounts, fixtures and complete laser alignment systems to fit your process
- Supported: over 30 years of product development backed by the alignment engineers who designed it
Pinpoint laser alignment equipment is used in aerospace, machine tool, medical device, shipbuilding and electronics manufacturing for machine tool alignment, equipment installation and production line setup
What's New at Pinpoint
Aligning the World's Largest Fusion Reactor
ITER needed a portable, highly accurate way to position massive magnets during tokamak assembly. A modified Microgage PRO Plus with custom mounts delivered real time XY data to 0.001 in.
Read the Case Study
Meet the New 90-Line PRO Family

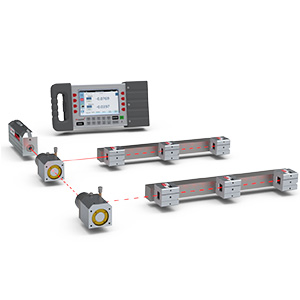

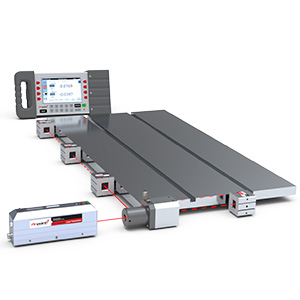

Turn the Microgage beam a precise 90° to square machine tools, slides and gantries, or set parallel lines for rolls and tracks. Square within 0.001 in. over 8 ft.
Explore 90-Lines
Introducing the Microgage Transceiver

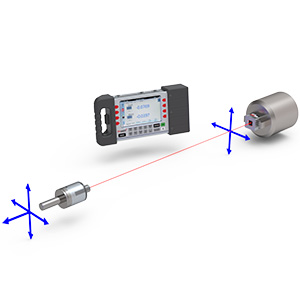

A laser and dual axis receiver in one housing for flatness, small slope changes and precise angle measurement, reading to 0.0001 in. at up to 180 ft.
See the TransceiverTypes of Precision Laser Alignment Tools

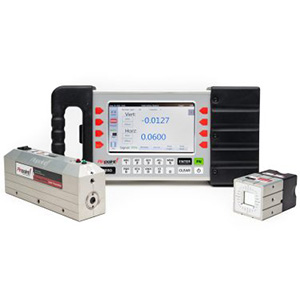

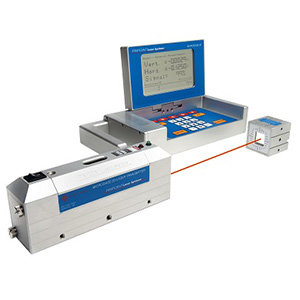

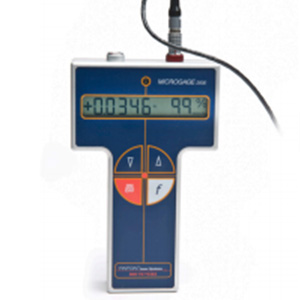

Pinpoint Laser Systems, showcased through products like the Laser Microgage PRO Plus, Laser Microgage 2D, and Laser Microgage 2000, epitomizes excellence in precision measurement technology. The Laser Microgage PRO Plus offers advanced features with all new digital receivers for intricate alignment tasks, as well as an onboard processing unit providing unmatched real time data and reporting. The Laser Microgage 2D stands out as a the robust workhorse and our entry model into axes measurement, catering to complex alignment challenges. The Laser Microgage 2000 is our single axis alignment system, with its robust design, excels in large-scale machinery alignment. All of our laser alignment tools are designed in a handheld configurations, making them an ideal precision alignment fixture for production line and assembly line environments. All these products exemplify Pinpoint’s commitment to delivering cutting-edge laser measurement solutions, ensuring unparalleled precision and reliability across various industrial settings. With durable and ergonomic designs, Pinpoint tools keep your assembly operations running accurately and efficiently.
Diverse Laser Alignment Applications
Pinpoint Laser Systems’ products, meticulously designed for adaptability, can be customized to address a broad spectrum of alignment tasks. From verifying the runout of extended slides to squaring up substantial machinery, Pinpoint’s laser alignment solutions offer tailored precision. This includes serving as a high precision laser alignment tool on production and assembly lines, ensuring parts are assembled with accuracy and confidence. The flexibility in our product line ensures that users can achieve optimal performance in diverse applications, meeting the unique alignment requirements of tasks both large and intricate. This adaptability marks Pinpoint Laser Systems as a reliable choice, since 1995 for precision measurement solutions across a variety of industries.
Precision Laser Alignment Applications for all Industries
Pinpoint Laser Systems, distinguishes itself by offering versatile and advanced laser measurement solutions adaptable to any industry. Their products showcase a remarkable flexibility, accommodating diverse applications with precision and ease. Whether in aerospace, medical, or manufacturing sectors, Pinpoint’s cutting-edge technology ensures seamless integration, providing users across industries with a comprehensive and adaptable solution for their specific alignment and measurement needs.
