90-Lines

90-Lines

The 90-Lines are a versatile product line of accessories that are used checking squareness and parallelism on machinery and equipment. A 90-Line redirects the Microgage laser beam by precisely 90° for squaring machinery, adjusting machine tools, positioning slides, and checking gantries. In addition to these squaring applications, the 90-Line creates precise parallel lines for checking roller alignment, tracks, and mechanical guides.

The 90-Lines are built with a durable, compact housing that allows the square exiting beam to be turned through a full rotation to create a square reference plane. The exiting laser is square to the incoming beam within 0.0006°, equivalent to 0.001 in., over 8 ft.

90-line-double

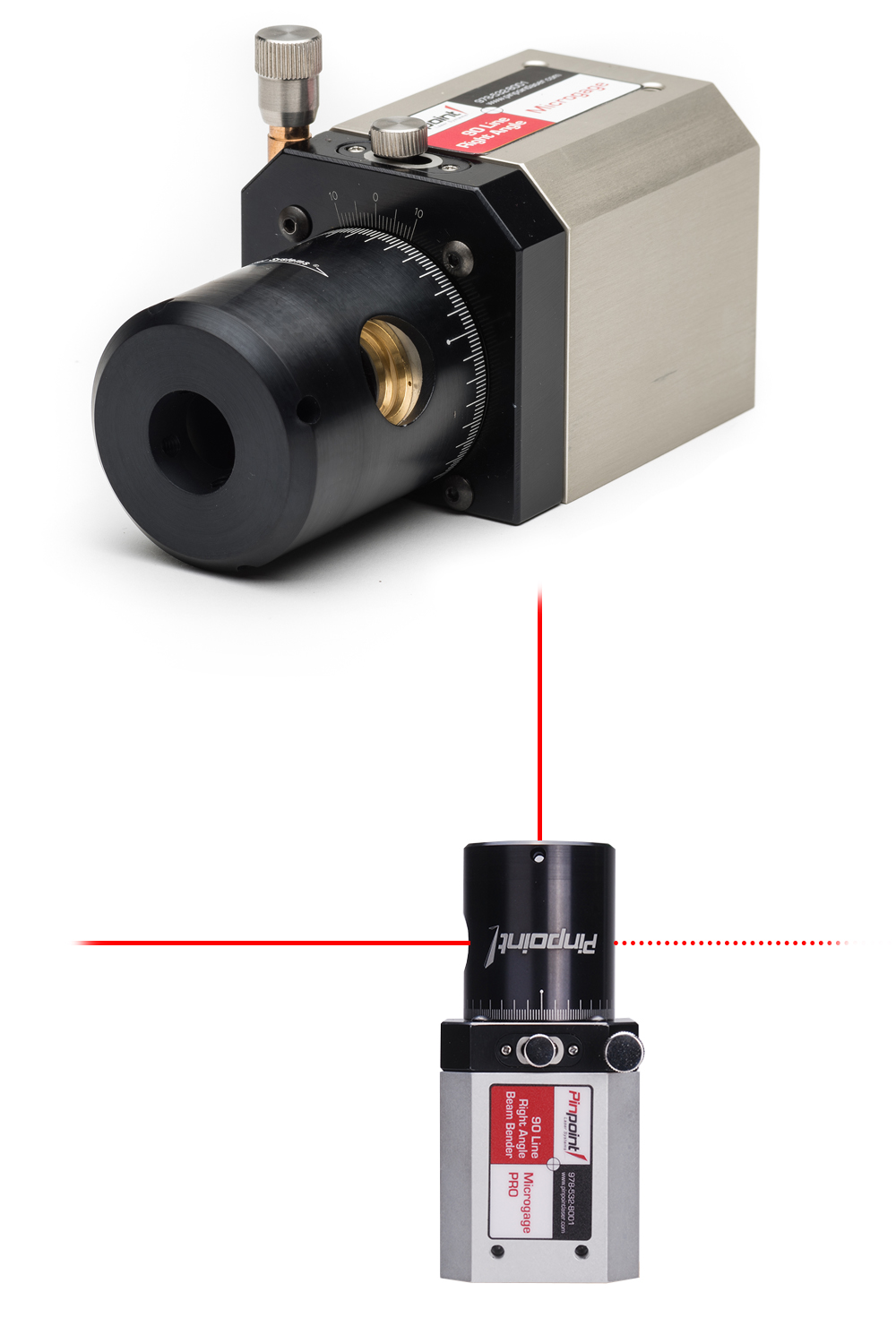

90-Line Right Angle

This is a versatile accessory for checking squareness and parallelism on machinery and equipment. The 90-Line redirects the Microgage laser beam by precisely 90° for squaring machinery, adjusting machine tools, positioning slides, and checking gantries. In addition to these squaring applications, the 90-Line creates precise parallel lines for checking roller alignment, tracks, and mechanical guides.

The 90-Line is built with a durable, compact housing that allows the square exiting beam to be turned through a full rotation to create a square reference plane. The exiting laser is square to the incoming beam within 0.0006°, equivalent to 0.001 in., over 8 ft.

90-Line-D-Feature

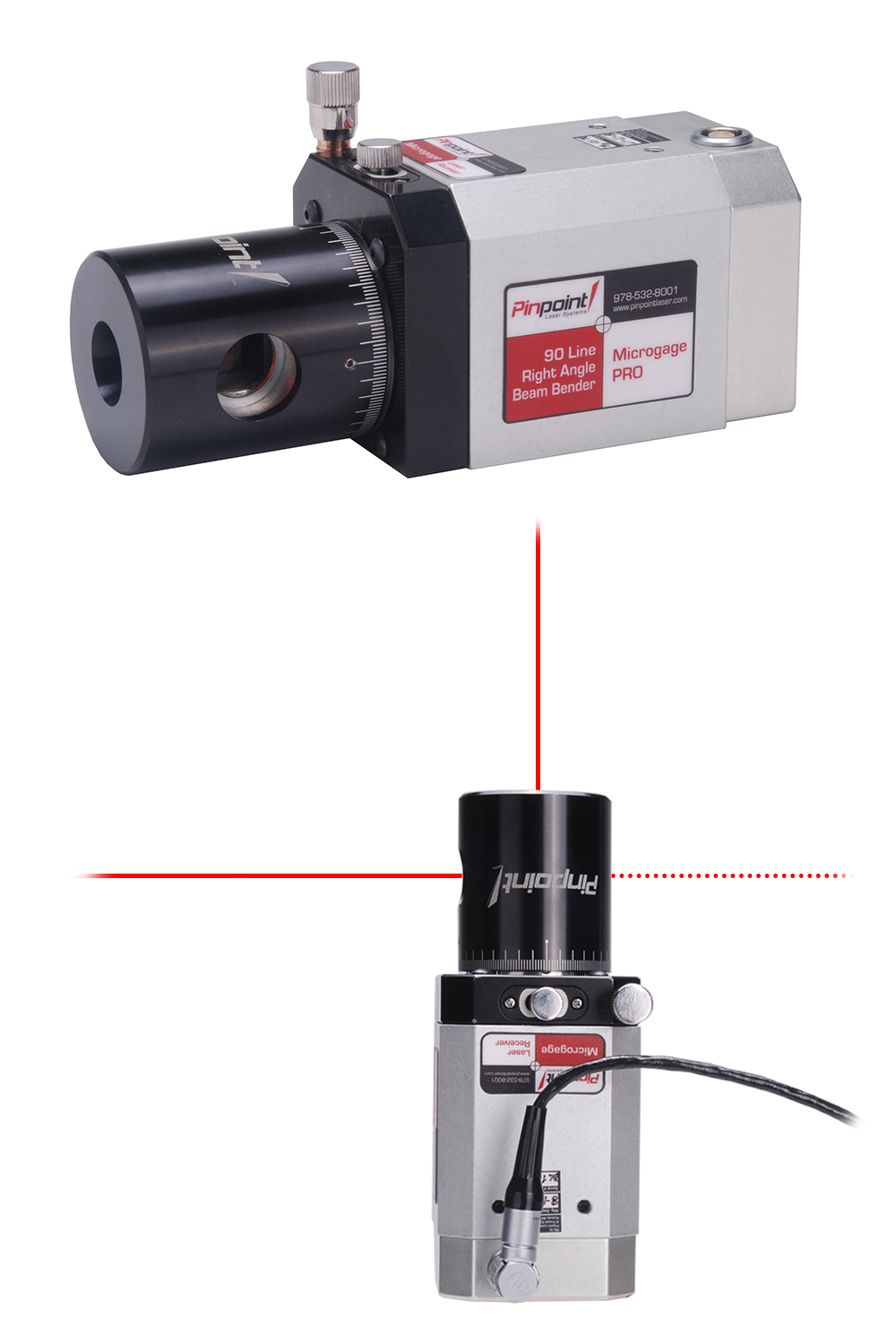

90-Line-D Right Angle

The 90-Line-D is fully compatible with Pinpoint’s Microgage line and works well with a variety of laser receivers, mounts, and software options for the Microgage PRO Smart Display and Capture™ software products.

A highly accurate penta-prism, for bending the laser precisely 90° redirects and incoming laser beam to a new “square” laser reference line. Rotating the front nosepiece of the 90-Line-D this laser reference line forms a laser plane for additional alignment and measurements. A fine adjust feature is included to help direct the laser beam exactly where needed. A built-in receiver monitors the incoming laser beam and actively corrects for any misalignments.

90line-DW-2feature

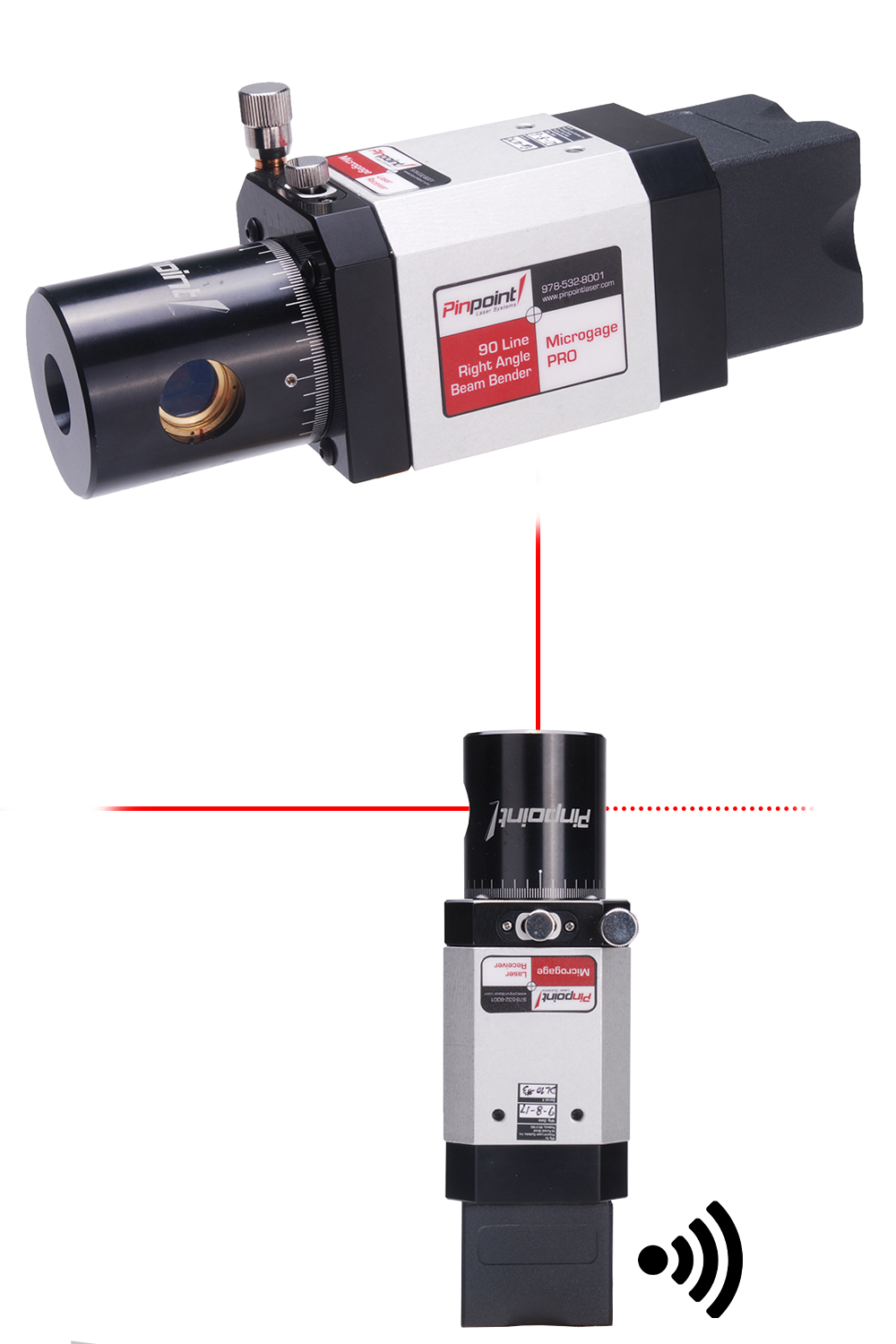

90-Line-D Wireless Right Angle

The 90-Line-D Wireless is fully compatible with Pinpoint’s Microgage line and works well with a variety of laser receivers, mounts, and software options for the Microgage PRO Smart Display and Capture™ software products.

A highly accurate penta-prism, for bending the laser precisely 90° redirects and incoming laser beam to a new “square” laser reference line. Rotating the front nosepiece of the 90-Line-D this laser reference line forms a laser plane for additional alignment and measurements. A fine adjust feature is included to help direct the laser beam exactly where needed. A built-in receiver monitors the incoming laser beam and actively corrects for any misalignments.

90line-T-2feature

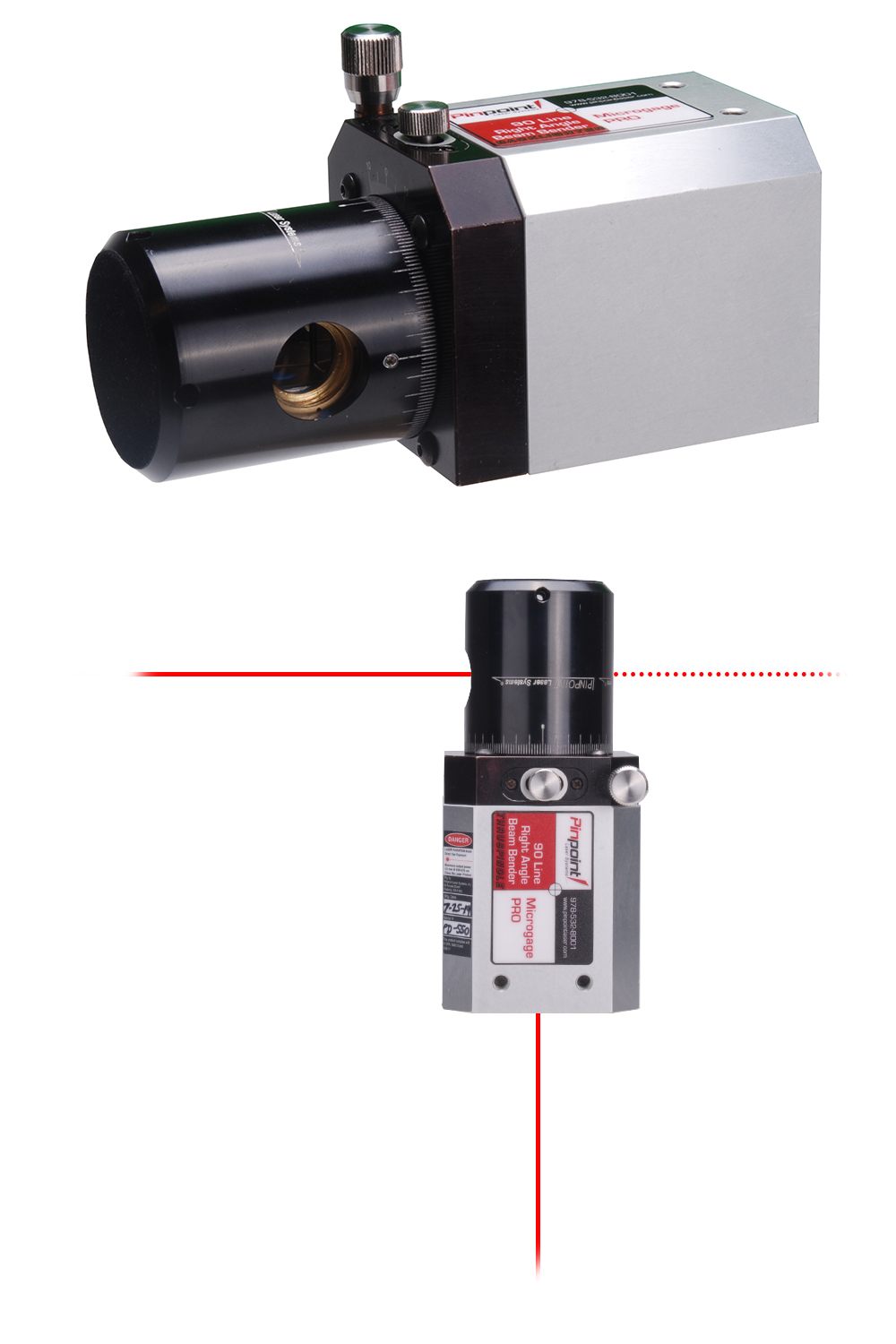

90-Line-T Right Angle

This is a versatile accessory for checking squareness and parallelismon machinery and equipment. The 90-Line-T redirects the Microgage laser beam by precisely 90° for squaring machinery, adjusting machine tools, positioning slides, and checking gantries. Unlike our traditional 90-Line. The 90-Line-T has the laser enter from the back of the 90-line so the face of the 90-Line can be positioned closer to the alignment process. In addition to these squaring applications, the 90-Line creates precise parallel lines for checking roller alignment, tracks, and mechanical guides.

The 90-Line-T is built with a durable, compact housing that allows the square exiting beam to be turned through a full rotation to create a square reference plane. The exiting laser is square to the incoming beam within 0.0006°, equivalent to 0.001 in., over 8 ft.
