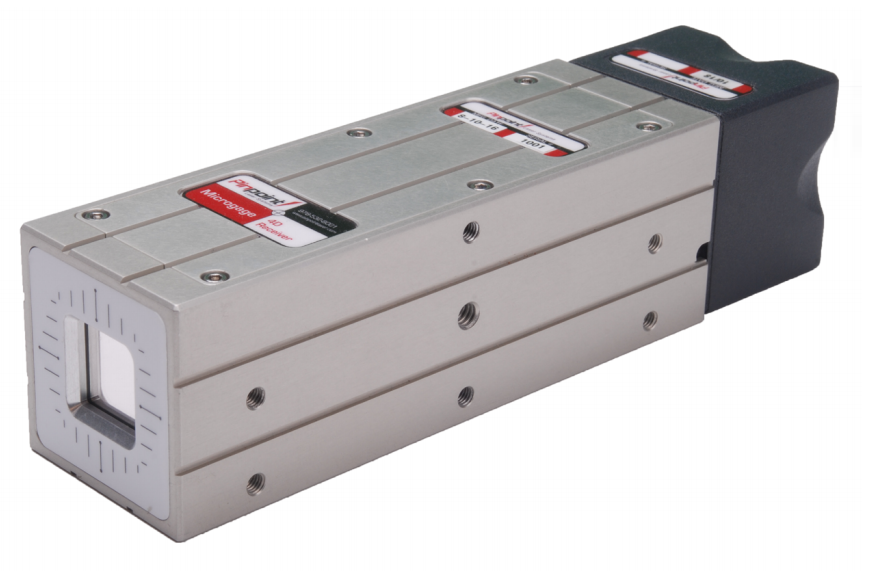

Microgage 4-Axis Wireless Receiver

About the Microgage 4-Axis Wireless Receiver

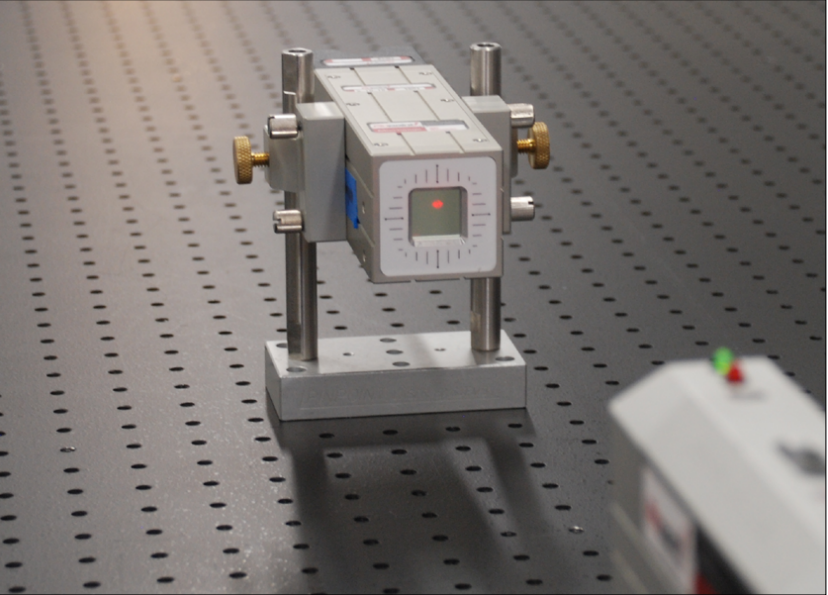

The Microgage 4-Axis Wireless Receiver brings wireless convenience to your measurement and alignment process. The Microgage 4-Axis Wireless Receiver delivers useful alignment information for checking industrial machinery and equipment. A laser reference beam defines a centerline and the 4-Axis Receiver provides a precise measurement for the left/right and up/down position of the receiver. In addition to these two linear axes, the receiver also provides the angular components (pitch and yaw). All four readings are shown in real time on the Microgage Pro Display. The linear measurements are very useful for showing runout and centerline errors while the pitch and yaw readings help identify parallelism and rotational misalignments. Operating on two AAA batteries, this wireless receiver eliminates the risk of tangling cables.

Microgage Laser Transmitter Details

  • Precision of 0.0001 inch and 0.002°
  • 120’ reliable wireless range
  • Operates in any orientation or position
  • Mounting points for easy attachment
  • No moving parts
  • Minimal calibration
  • Solid, machined aluminum housing
  • Easy to set-up and use
  • Lathe and machine alignment
  • Bore and shaft alignment
  • Checking stage and slide travel
  • Aligning injection molding machines
  • Adjusting extruder screws and barrels
  • Checking CNC milling equipment
