About the Microgage Transceiver

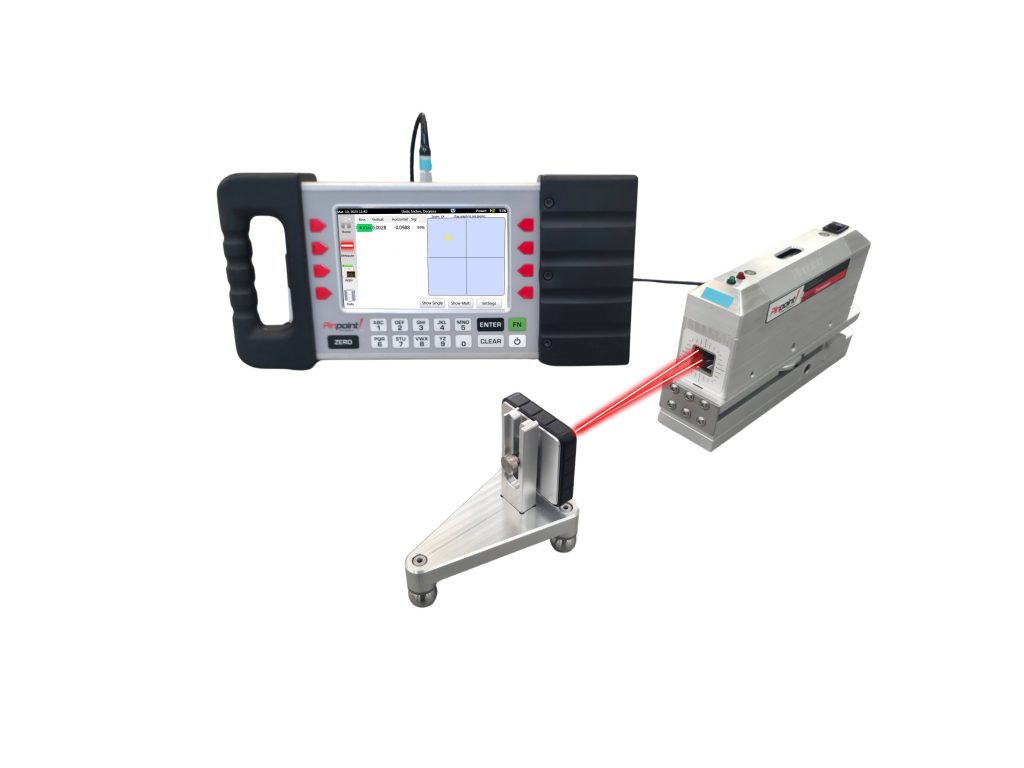

The Microgage Transceiver combines a laser transmitter with a dual axis digital receiver for precision angle measurements. This transceiver is ideally suited for making precise measurements of surface flatness, small slope changes, and precise angular control. The laser transmitter produces a precise laser beam that forms a straight reference line that can be used from a few inches up to 180 feet away. The laser reference beam, when combined with the standard Microgage receiver, provides accurate readings as small as 0.0001 inch (2.5 micron). The Microgage transceiver contains a built-in dual axis digital receiver that measures the precise position of a laser reference beam that is reflected back into the laser. If the mirror, or the reflective face of a standard Microgage receiver, changes in angle, the reflected beam coming back to the laser will be displaced. The internal receiver measures this displacement and provides a precise X/Y reading on the Microgage PRO Smart Display.
The Microgage transceiver has a built-in machinist level and can also be mounted on a variety of mounts and fixtures for precise measuring and control.
Microgage Transceiver Details
- Easy To Set Up and Use
- Operating Distance Up to 180 Feet
- Reference Housing Machined Flat and Square For Precision
- Laser Beam Parallel to Mounting Base and Sides Of Housing
- Precision Machinist Level Built-In
- Mounting Holes for Easy Attachment To Fixtures
- Operates for 20 Hours on Four AA Batteries
- Durable Machined Anodized Housing with Stainless Steel Components
- Indicators for Laser On and Low Battery
- Built for Industrial Environments and Heavy Use
- Checking Machine Slides and Stages for Linear Travel
- Measuring Flatness of Surface Plates
- Monitoring Angular Variations in Machine Tools
- Precision Antenna Alignment
- Precise Rotary Stage Control
- Aligning Rolls and Precision Equipment
- Checking Shaft to Shaft Parallelism
- Verifying Gearbox and Drive Motor Straightnes
Measurement resolution 0.0001″ (2.5 Micron)
Measurement accuracy ± 0.0002″ or 1% of measurement (5 micron)
Measurement range ± 0.350″ (± 9mm)
Laser source laser diode 635 nm. <1mw
Laser accuracy ≤ 2 arc-seconds
Laser level 10 arc-second, precision bubble, machinist grade
Laser run time > 20 hours
Laser power 4, AA alkaline batteries & rechargeable option
Laser dimensions 9.0” L x 2.0” W x 3.7”H
Receiver cable durable cable and connector, length 12 feet
