Precision Laser Alignment Tools Built for Industry
Pinpoint Laser Systems designs and manufactures handheld laser alignment tools that deliver micron-level accuracy on production lines, assembly floors, and heavy machinery — right from a single, portable unit.
What Is a Laser Alignment Tool?
A laser alignment tool is a precision measurement instrument that uses a collimated laser beam to detect, measure, and correct misalignment in machinery, structures, and manufactured components. Unlike mechanical methods such as dial gauges or straightedges, a laser alignment tool delivers non-contact, digital measurements with far greater accuracy, speed, and repeatability.
At its core, every Pinpoint laser alignment tool consists of three paired components: a laser transmitter that emits a stable reference beam, a receiver (position-sensing detector) that captures the beam and converts positional data to digital values, and a display unit that processes and presents real-time alignment readings.
Pinpoint's laser alignment tools are engineered specifically for handheld and production line use — making them ideal where speed, portability, and repeatability on the assembly floor matter most. Each system is designed, assembled, and calibrated in our Peabody, Massachusetts facility.
Three Product Lines. One Standard of Precision.
Every Pinpoint laser alignment tool is built around the same core architecture — a paired transmitter, receiver, and display — scaled to match your measurement demands, from single-axis production line checks to full multi-axis machine tool qualification.

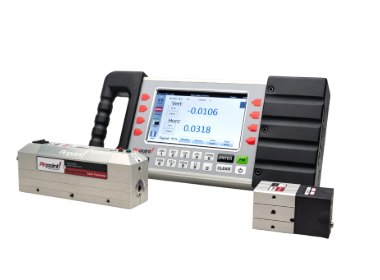

Pinpoint's most advanced laser alignment tool, featuring all-new digital receivers and an integrated onboard processing unit. Delivers real-time data, automated reporting, and submicron resolution for the most demanding applications.

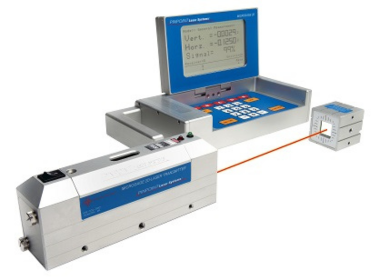

Pinpoint's robust workhorse laser alignment tool — the first step into two-axis measurement. Handles complex alignment challenges across both horizontal and vertical planes simultaneously, making it the go-to tool for machine tool alignment and production floor use.
Pinpoint's single-axis laser alignment tool, purpose-built for robust, large-scale machinery alignment. Its durable design excels at long-range straightness, flatness, and parallelism measurements where a rugged, reliable tool is required on heavy industrial equipment.
How Laser Alignment Tools Work
Laser alignment replaces time-consuming mechanical methods with a fast, non-contact digital process that takes minutes instead of hours.
Laser Alignment Applications
Laser Alignment Tools Across Every Sector
From aerospace tolerances to production line throughput, Pinpoint laser alignment tools are proven across the most demanding industrial environments.
-
A laser alignment tool is used to precisely measure and correct the positional alignment of machinery components, structural elements, and manufactured parts. Common applications include straightness measurement of machine beds and linear axes, flatness verification of surface plates, shaft and spindle alignment on rotating machinery, bore alignment in engines and turbines, and squareness and parallelism checks on CNC machine tools. Laser alignment tools replace slower, less accurate mechanical methods — delivering results in a fraction of the time with significantly higher accuracy.
-
A laser alignment tool works by using a collimated laser beam as a perfectly straight reference axis. The system consists of three main components: a transmitter that projects the laser beam, a receiver that measures where the beam strikes its sensor face, and a display unit that shows real-time positional readings. As the receiver moves along a machine component, any deviation from the beam's path is captured and displayed digitally. Pinpoint's systems add wireless connectivity between the receiver and display, allowing the operator to read measurements remotely without a tethered cable.
-
All three Pinpoint laser alignment tools use the same core architecture — a paired transmitter, receiver, and display — but differ in capability. The Laser Microgage 2000 is our single-axis system for large machinery. The Laser Microgage 2D adds a second measurement axis (X and Y simultaneously) for machine tool and production line use. The Laser Microgage PRO Plus is our flagship, with all-digital receivers, onboard processing, and the highest resolution for the most demanding aerospace, medical, and precision manufacturing applications.
-
Laser alignment tools are significantly more accurate than dial gauges. A typical dial indicator has a resolution of 0.0001 inches and is subject to stylus deflection and operator-induced errors. Pinpoint's laser alignment tools operate without physical contact, eliminating these error sources entirely. The Microgage PRO Plus delivers sub-micron resolution, and all Pinpoint systems produce repeatable digital results unaffected by mechanical wear. They can also measure over much greater distances without accuracy loss — something dial gauges cannot do.
-
Yes — production line use is one of Pinpoint's primary design objectives. Unlike many industrial laser alignment systems designed for periodic maintenance, Pinpoint tools are built in a handheld form factor specifically for high-volume, repeatable use directly on the assembly floor. They are durable, quick to set up, and include backup systems to keep production running. The Microgage 2D in particular is widely used as a precision fixture on production and assembly lines to verify part alignment before and after assembly.
-
Yes. Every Pinpoint laser alignment tool is designed by our engineering team and manufactured in our state-of-the-art facility in Peabody, Massachusetts. Pinpoint Laser Systems has been producing American-made laser alignment tools since 1995. Our in-house manufacturing and calibration ensures every unit meets the precise tolerances our customers depend on — and allows us to support custom configurations that offshore manufacturers cannot offer.
Not Sure Which Laser Alignment Tool Is Right for You?
Talk to one of our alignment engineers. We'll review your application, machinery, and tolerance requirements — and recommend the right system at no charge.
