About Spindle Alignment
Product # – PR-SP32

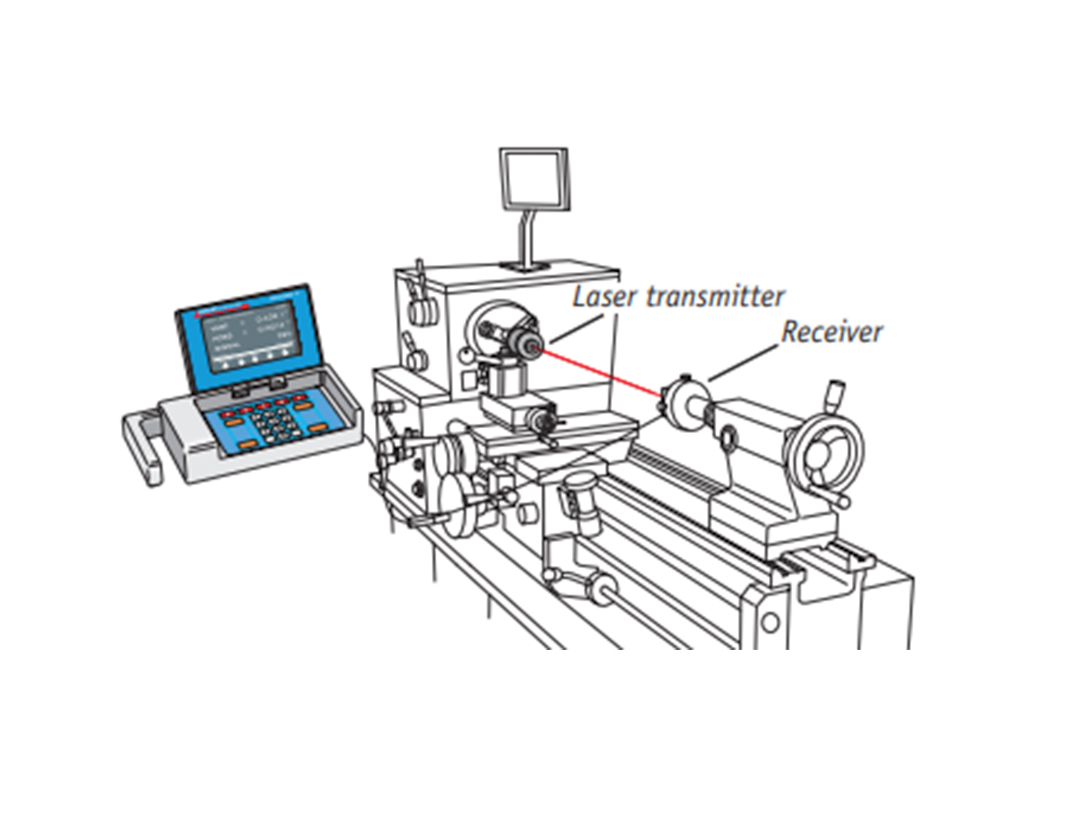

The 2D Spindle alignment Kit includes a cylindrical laser. The laser transmitter is placed into a chuck or in the bore of the spindle so that the laser beam is projected along the rotational centerline of the machine.
The Microgage 2D receiver is secured to the tool holder, tailstock, or mounted in the bore of an opposing spindle to catch the laser beam. Pinpoint Laser Systems are simple, rugged and portable
Spindle Details
- 2D display unit
- Cylindrical Laser Transmitter
- Pinpoint Capture™ software (optional)
- Spindle Receiver Mount
- Wireless option for convenience
- Precise down to 0.0001 inch (depending on application)
- Quick return on investment
- Intuitive set up and use
- Improves efficiency and expands in-house capabilities
- Removes guesswork for alignment or measurement
- Minimizes machine downtime
- Supports preventative maintenance efforts
- Eliminates need for outside alignment contractors
- Reduces machinery installation costs
- Align lathes and turning centers
- Position and adjust opposing spindles
- Align boring equipment
- Monitor and adjust machine tools
- Align bearings and shaft supports
- Align bar feeder
- Plus many other applications
Measuring System
Specifications
Measurement resolution
0.0001″ (2.5 micron)
Measurement accuracy
± 0.0002″ or 1% of measurement (5 micron)
Operating distance
6” to 180”
Laser Transmitter*
Specifications
Laser accuracy
≤ 2 arc-seconds
Laser level
10 arc-second, machinist grade
Laser source
laser diode, 636Nm, < 1mW
Laser repeatability
<1 arc-second
Laser dimensions
4.3” L x 2.6” D x 8.1”C
Laser housing
solid machined aluminum, hard anodized coating
Receiver*
Specifications
Active detection area
(0.75″ x 0.75″ 19mm x 19mm)
Receiver housing
solid machined aluminum & hard anodized coating
Receiver dimensions
2.0” x 2.0” x. 20”, 2.0” x2.0” x 3.0” (wireless)
2D Display
Specifications
Display configuration
hand-held, portable, self-contained
Resolution
0.0001″ (2.5 micron)
Units
inch, mm, mils, custom
Display
Monochrome Display
Controls
keypad, multifunction buttons
Storage
data readings & notes up to 1,000
Housing
solid machined aluminum, hard anodized coating
