Microgage PRO – Straightness

About Straightness

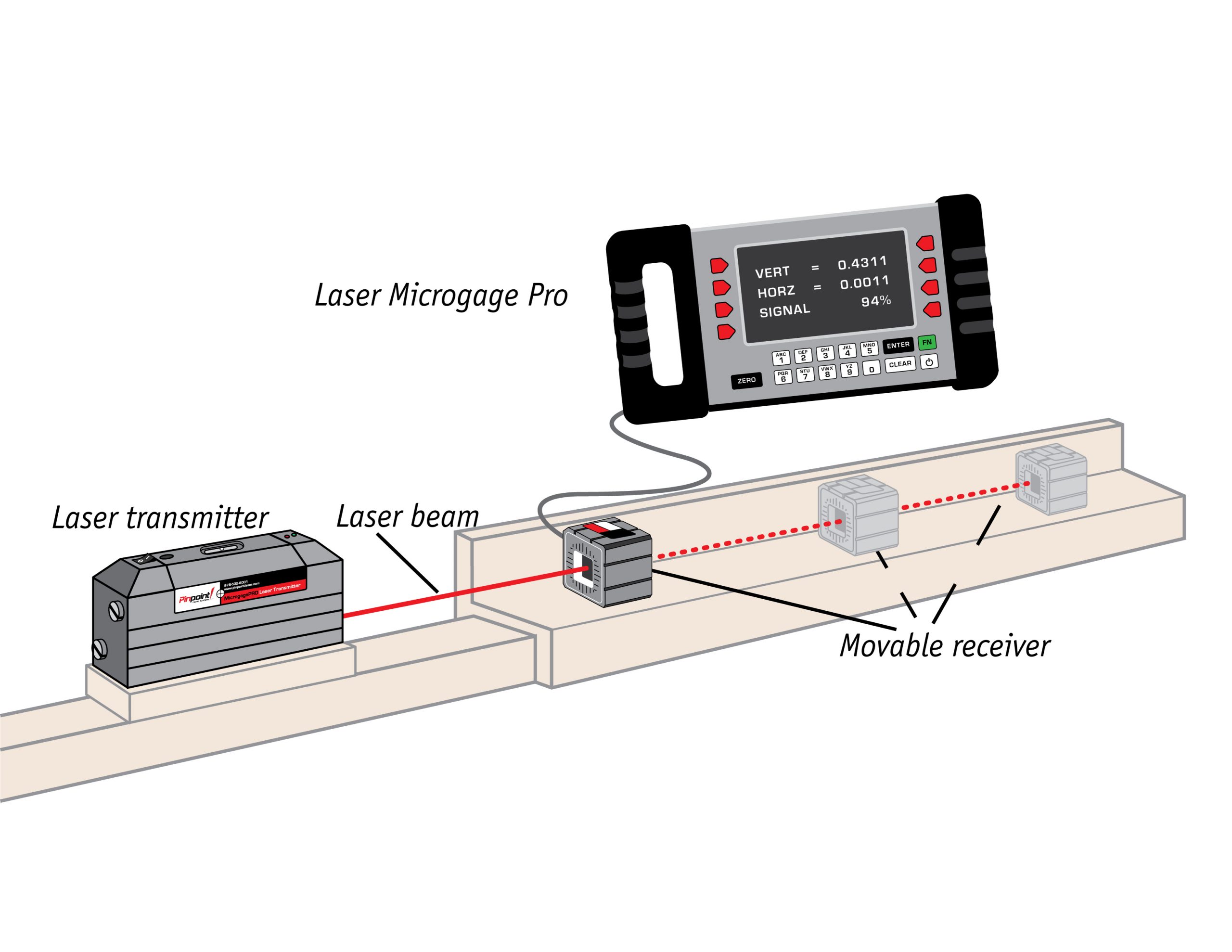

Microgage PRO works on a very simple principle: Laser light travels in a straight line. If you attach a laser transmitter to one assembly and a laser receiver to another, then the alignment of the two assemblies will equal the X/Y displacement of the laser beam at the receiver. And Microgage PRO measures all this with a precision of 0.0001 inch over distances of up to 180 feet.

The Microgage PRO is specifically designed so users can handle virtually any alignment application, with set-up taking only minutes in most cases. Its rugged and highly portable smart display includes two convenient handgrips, a bright, color touchscreen, a hardware keypad, and a powerful on-board microprocessor that communicates via wires or wirelessly with receivers.

 Straightness Details

  • PRO Smart display unit
  • 4-Axis Precision Mount
  • Precision Tripod Mount
  • Pinpoint CaptureTM software
  • Wireless option for convenience
  • Precise down to 0.0001 inch (depending on application)
  • Quick return on investment
  • Intuitive set up and use
  • Improves efficiency and expands in-house capabilities
  • Removes guesswork for alignment or measurement
  • Minimizes machine downtime
  • Supports preventative maintenance efforts
  • Eliminates need for outside alignment contractors
  • Reduces machinery installation costs
  • Aligning long rail and track sections
  • Checking roll flatness and profiles
  • Lathe and spindle alignment
  • Measuring linear deflections
  • Shaft and drive alignment
  • Checking for runout on moving slides, tables and stages
  • Positioning bearings and shaft supports over long runs
  • Monitoring surface deflections and bending in long structures
  • Measure bend and profiles in tracks and guide rails

Measuring System

Specifications

Measurement resolution

0.0001″ (2.5 micron

Measurement accuracy

± 0.0002″ or 1% of measurement (5 micron)

Operating distance

6” to 180”

Laser Transmitter*

Specifications

Laser accuracy

≤ 2 arc-seconds

Laser level

10 arc-second, machinist grade

Laser source

laser diode, 636Nm, < 1mW

Laser repeatability

<1 arc-second

Laser dimensions

4.3” L x 2.6” D x 8.1”C

Laser housing

solid machined aluminum, hard anodized coating

Receiver*

Specifications

Active detection area

(0.75″ x 0.75″ 19mm x 19mm)

Receiver housing

solid machined aluminum & hard anodized coating

Receiver dimensions

2.0” x 2.0” x. 20”, 2.0” x2.0” x 3.0” (wireless)

Smart Display

Specifications

Display configuration

hand-held, portable, self-contained

Resolution

0.0001″ (2.5 micron)

Units

inch, mm, mils, custom

Display

state-of-the-art, color, high-resolution, touchscreen

Controls

keypad, multifunction buttons, touchscreen

Storage

data readings & notes up to 10,000

Housing

solid machined aluminum, hard anodized coating
