Microgage 2D – Roll

About Roll Alignment

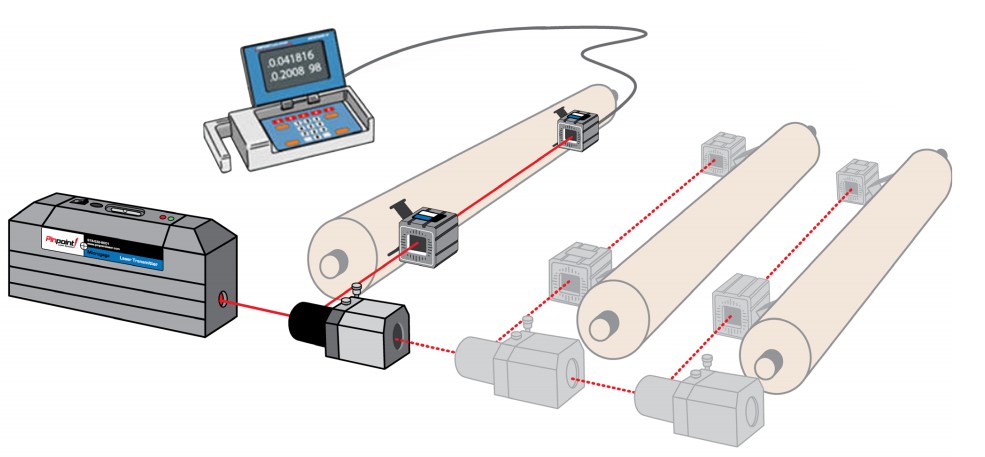

Laser roll alignment provides precision alignment between paper mill rolls, metal forming equipment, multiple bearings along a shaft, machinery beds, and printing press rolls to name a few. The slightest misalignment can cause elements to work against one another resulting in mechanical wear, premature failures, and defective product. Utilizing the Pinpoint Laser Systems’ Roll Kit will ensure your equipment works in unison reducing maintenance costs and extending the life of your machinery while increasing quality throughput.

Roll Details

  • 2D LCD Display Unit
  • Ruggedized, all aluminum flip top display unit
  • Precision Tripod Mount
  • Pinpoint Capture™ Software
  • Measure distances from a few inches up to 150 feet
  • Precise down to 0.0001 inch (depending on application)
  • Quick return on investment
  • Intuitive set up and use
  • Improves efficiency and expands in-house capabilities
  • Removes guesswork for alignment or measurement
  • Minimizes machine downtime
  • Supports preventative maintenance efforts
  • Eliminates need for outside alignment contractors
  • Reduces machinery installation costs
  • Checking & setting roll parallelism
  • Adjusting rollers, idlers and guides
  • Replacing worn and damaged rolls
  • Profiling roll surfaces
  • Aligning sheet and extrusion lines
  • Measuring roll deflections
  • Adjusting coating and converting equipment
  • Checking web handling machinery

Measuring System

Specifications

Measurement resolution

0.0001″ (2.5 micron)

Measurement accuracy

± 0.0002″ or 1% of measurement (5 micron)

Operating distance

6” to 180”

Laser Transmitter*

Specifications

Laser accuracy

≤ 2 arc-seconds

Laser level

10 arc-second, machinist grade

Laser source

laser diode, 636Nm, < 1mW

Laser repeatability

<1 arc-second

Laser dimensions

4.3” L x 2.6” D x 8.1”C

Laser housing

solid machined aluminum, hard anodized coating

Receiver*

Specifications

Active detection area

(0.75″ x 0.75″ 19mm x 19mm)

Receiver housing

solid machined aluminum & hard anodized coating

Receiver dimensions

2.0” x 2.0” x. 20”

Smart Display

Specifications

Display configuration

hand-held, portable, self-contained

Resolution

0.0001″ (2.5 micron)

Units

inch, mm, mils, custom

Display

Monochrome Display

Controls

keypad

Storage

data readings up to a 1,000

Housing

solid machined aluminum, hard anodized coating
